10W Ultra-Compact Power Module:

AC DC 24v module for step down power 10W switching power supply drawing:

AC DC CONVERTER:

Input characteristics

(test at room temperature 20 ℃).
Item Name Technical Criteria Unit
Rated input voltage 100-240 VAc
Input voltage range 90-264 VAc
Maximum input current ≤0.2 A
Input current surge ; ≤10 A
maximum input voltage ≤270 VAc
Enter slow start ≤50 mS
Input Low Voltage Efficiency Vin=110VAc,Output full-load≥69 %
Input High Voltage Efficiency Vin=220VAc,output full-load≥70 %
Long-term reliability MTBF≥100,000 h
Load rated output voltage +5±0.1 VDc
Full rated output voltage +5±0.2 VDc
Short-term maximum output current ≥1000 mA
The maximum output current for a long time ≥600 mA
Voltage Regulation ±0.2 %
Load Regulation ±0.5 %
Output ripple and noise
(mVp-p) ≤50
Rated input voltage, full load. Using 20MHz of bandwidth,
The load side 10uF and 0.1uF capacitor to be tested. mV
Switch overshoot amplitude (Rated input voltage and output load plus 10%)≤5 %VO
Output over-current protection 150-200% of the output maximum load A
Output short circuit protection Direct short circuit at the normal output, automatically resume normal operation after a short
circuit removal

SMPS 90-245V AC 24V 10W AC to DC converter hlk10m24 isolated switching mode intelligent power supply module IOT smart home

inverters & converters:

DC24v Ac To Dc Power Supply

0.42A Ac To Dc Power Supply

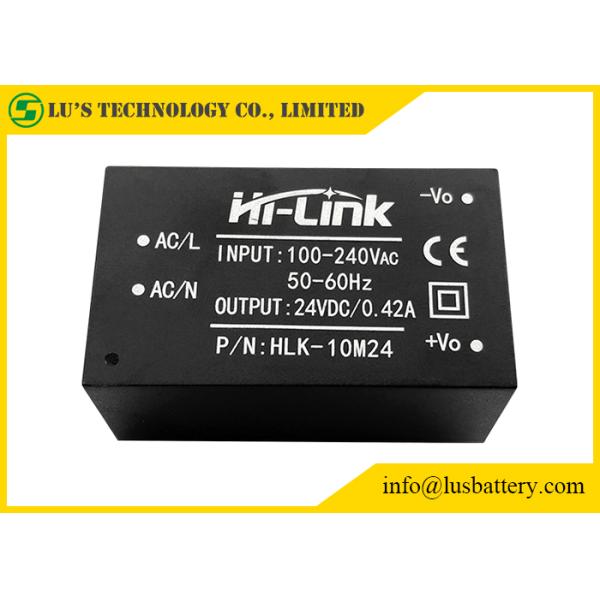

Hilink 10M24

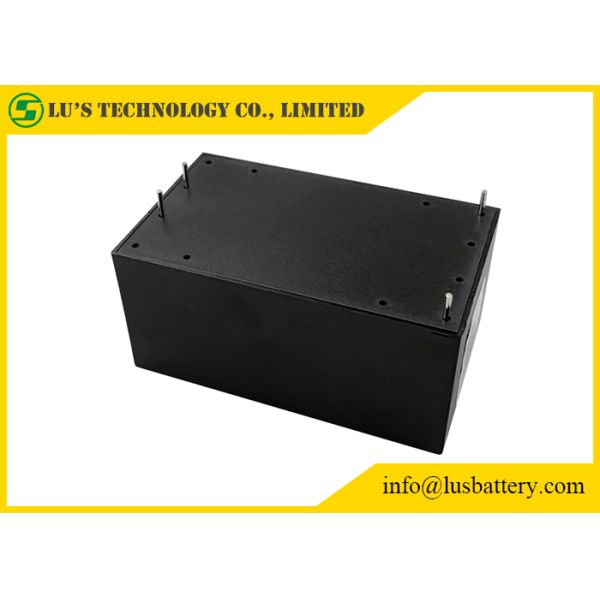

0.42A 10W 220v DC24v Ac To Dc Power Supply Hilink 10M24 Images
